Description

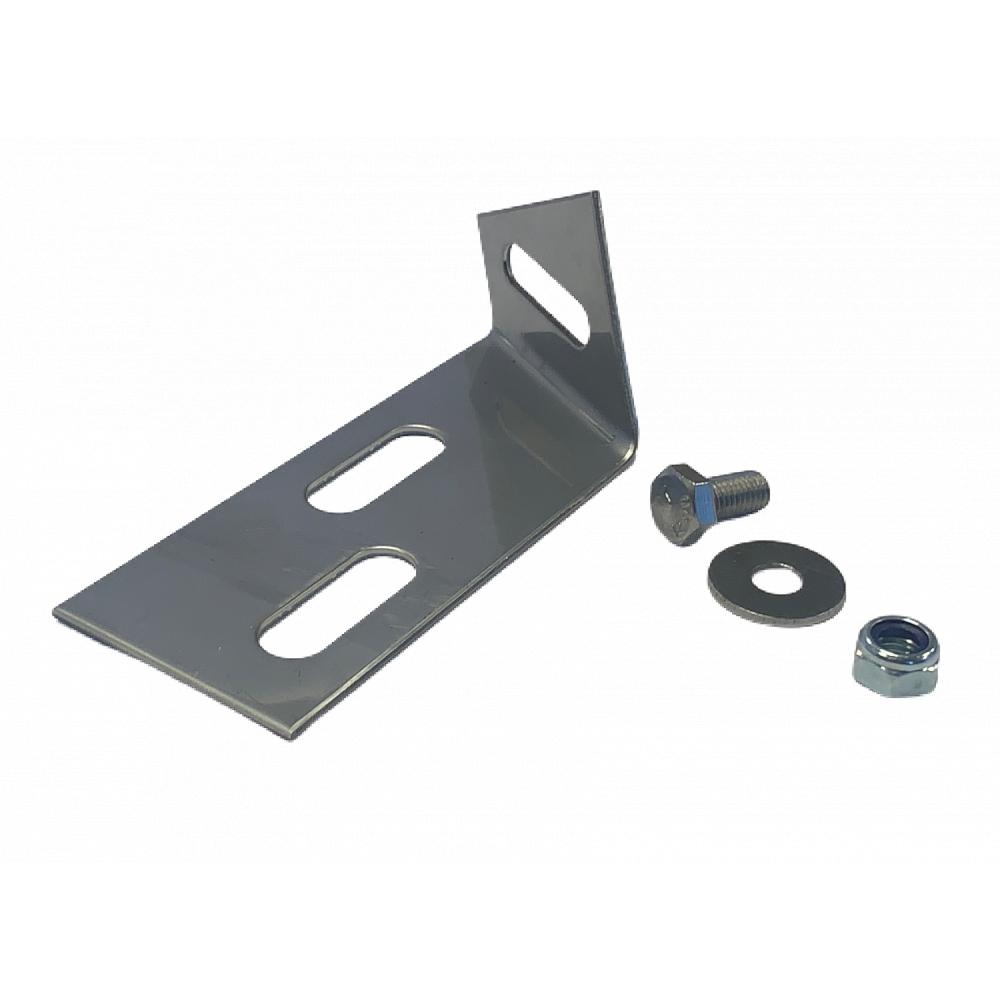

This sturdy stainless steel mounting bracket, 2 mm thick, is available in both left-hand and right-hand versions. The mounting bracket is supplied with one M8x25 stainless steel stud bolt, one M8 stainless steel body washer, and one coated stainless steel lock nut. This makes the mounting bracket ideal for fixing feed troughs for piglets and fattening pigs in virtually any right-angled position.
Flexibility in installation

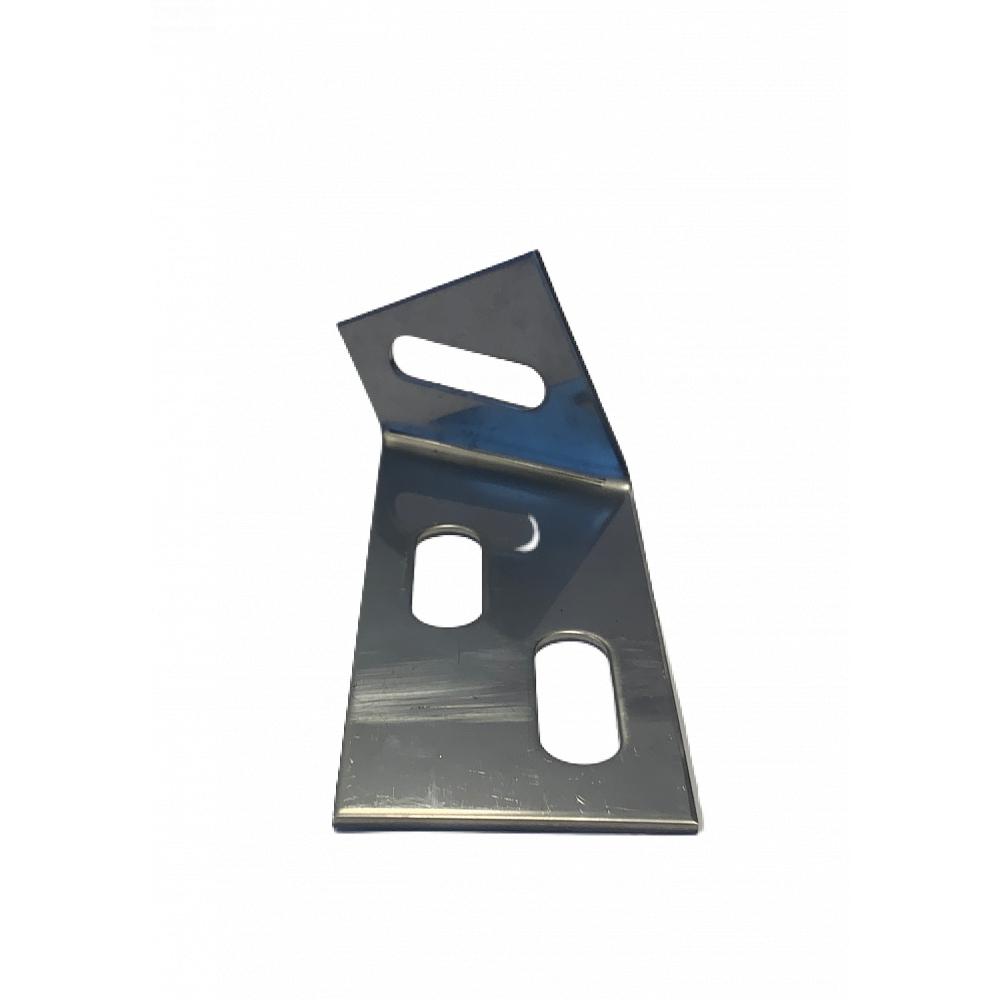

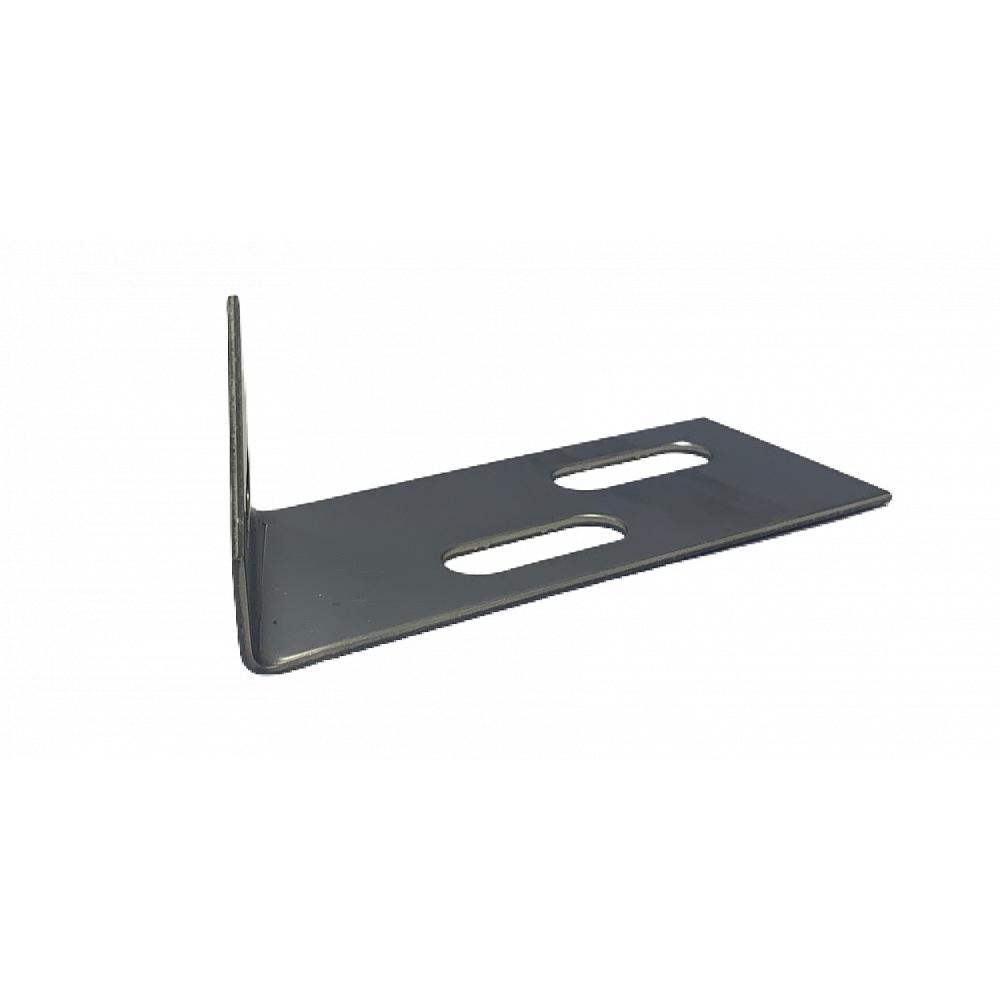

The stainless steel mounting bracket for feed troughs has two slotted holes in the long section and one slotted hole in the short section. Thanks to the clever positioning and angle of these slotted holes, the mounting brackets fit in almost any right-angled position. When ordering, you can specify how many left-hand and right-hand models you require. We supply a standard mix of 50% left-hand and 50% right-hand, unless otherwise specified.
Recommendations for fitting feeding troughs
When installing feed troughs for piglets, we recommend using two mounting brackets per trough. For feed troughs for fattening pigs, we recommend two mounting brackets for single troughs. For double feed troughs built into a partition wall, we recommend four mounting brackets. These mounting brackets are also ideal for many other applications outside the pig farming sector.
Standard Terms and Conditions of Delivery
If you do not specify a particular mix of left- and right-hand models when placing your order, we will assume a 50/50 split by default. This ensures that you always receive the correct combination for optimal installation.

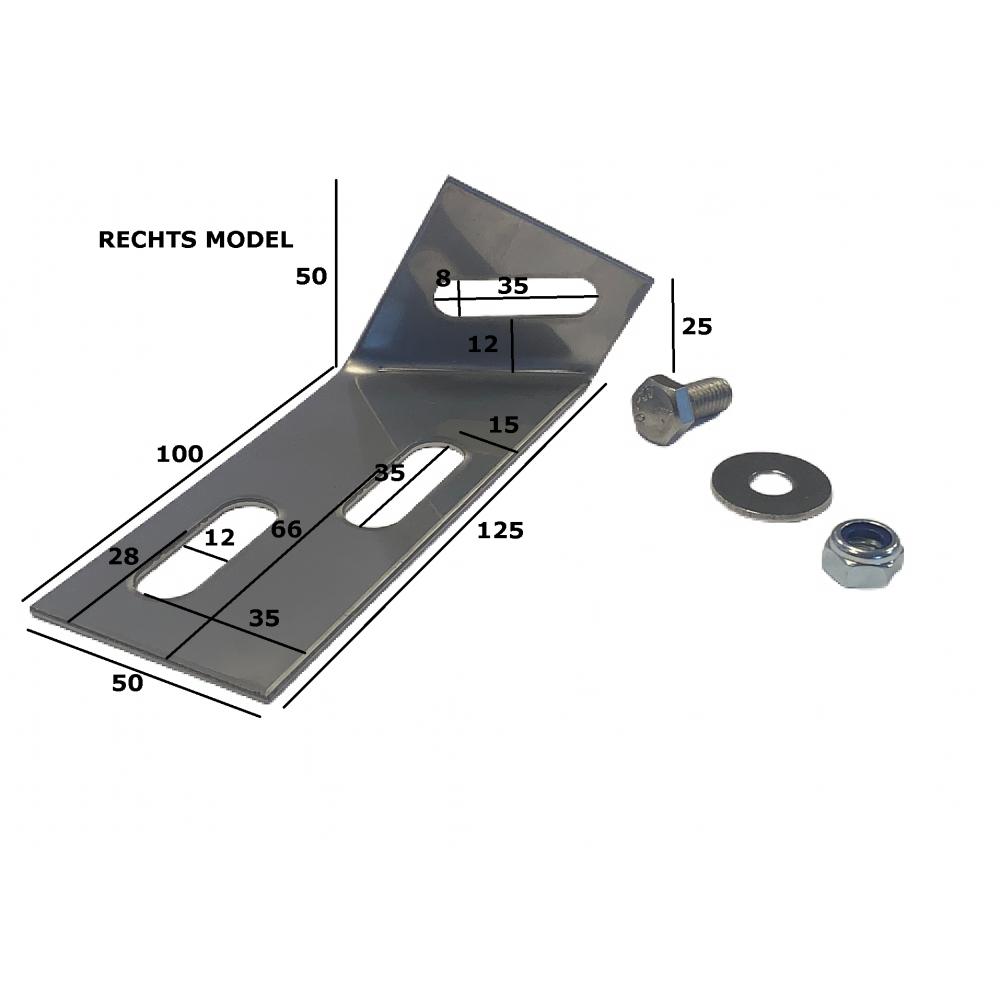

Dimensions and specifications
The stainless steel mounting bracket for feed troughs is 150 mm long (including the folded edge), 50 mm wide and 2 mm thick. These dimensions make it a robust and versatile choice for a variety of mounting requirements. We also have smaller mounting angles You can find feeders for smaller pigs in this online shop.
