Description

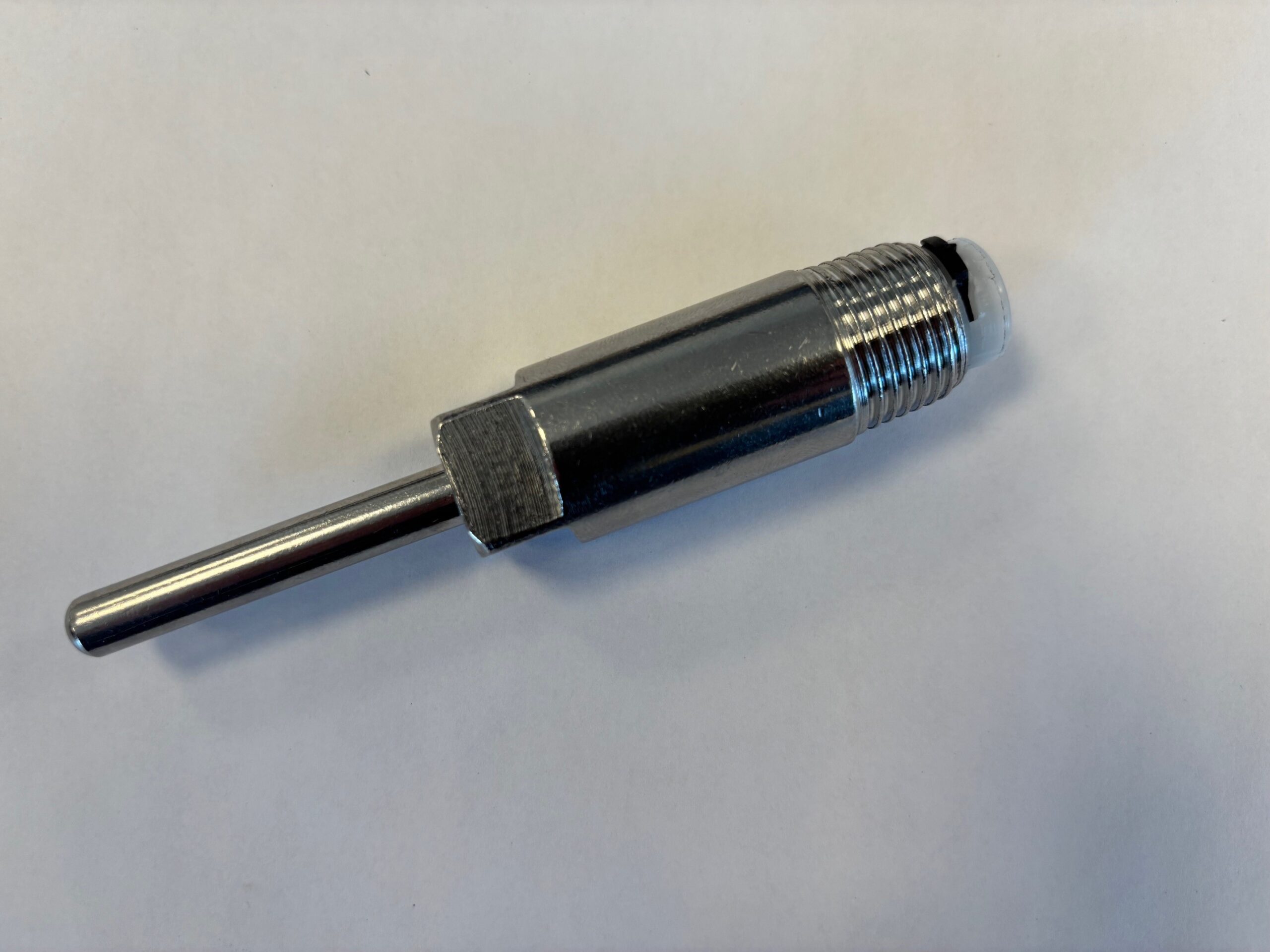

High quality and durable drinking nipple
The PT1 pig drinking nipple, made of 1⁄2 hindered outer thread STAINLESS STEEL 304, offers durable and high quality quality for the provision of drinking water in frying bins, feed troughs and some drinking troughs for pigs. This drinking nipple is suitable for piglets, meat pigs and sows, making it a versatile choice for different types of pigs stables.
Adjustable throughput and high-quality components

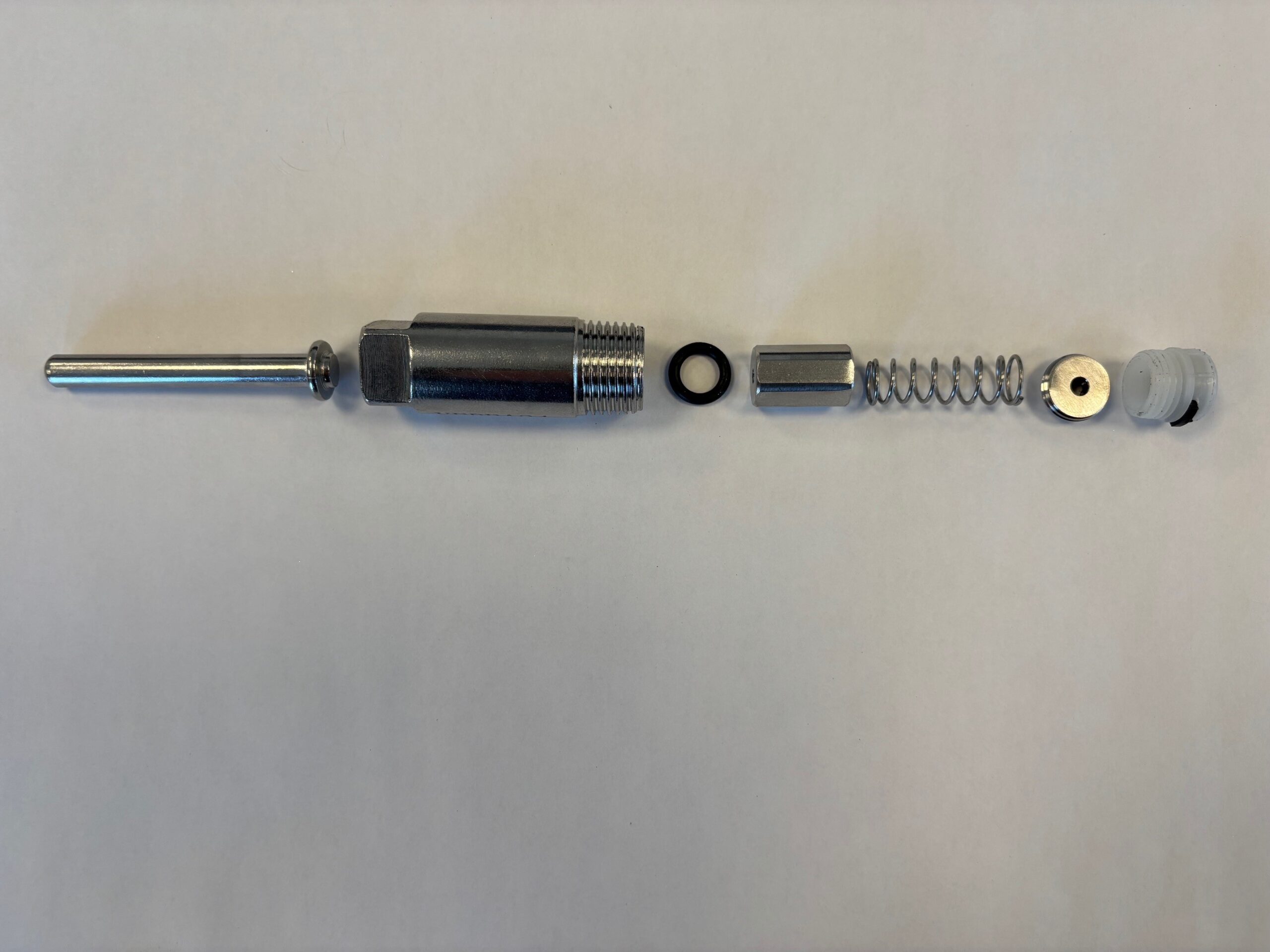

The drinking nipple is equipped with an adjustable inlet/sprinkler with stainless steel 304 sieve, a stainless steel block plate (4 mm thick) to block the spring, a Stainless steel spring 35 mm, a stainless steel spring protector, a stainless steel pen and a EPDM rubber ring. Thanks to these high-quality components, the drinking nipple can withstand the harsh conditions in a pigsty. The parts of the PT1 frying nipple can be ordered separately and easily replaced with an insert key.
Independently adjustable and versatile in use
This tip nipple is independent of the water pressure, which ensures a constant and reliable water flow. We use this drink nipple in all our pigs feed bins. Moreover, the drinking nipple is to be converted as a whey nipple, which is useful if you want to feed cheese whey to your pigs. In this case, the whey must not contain particles to prevent constipation. In addition, we recommend replacing the EPDM ring with a Viton O-ring to extend the lifespan of whey or acids.

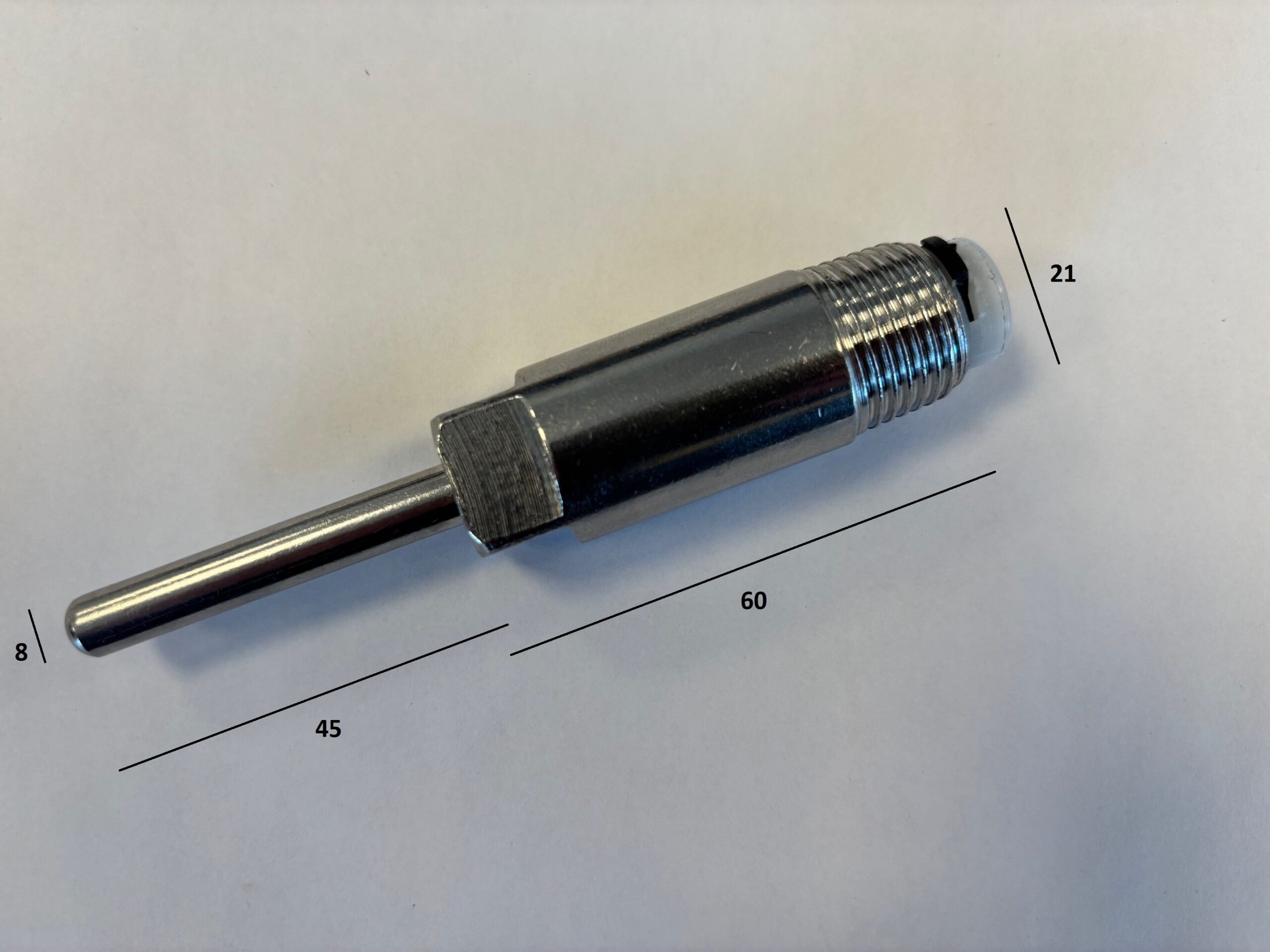

Dimensions and specifications
- Drinking nipple housing: 60 mm long (including wire)
- Part of the pen that sticks out: 45 mm long
- Pen diameter: 8 mm
- Total length of drinking nipple: 105 mm
Guarantee and important note
The PT1 drinking nipple is equipped with an EPDM O-ring, which is resistant to a large number of acids. Nevertheless, we do not guarantee drinking nipples if water is acidified, drinking water is chemically treated preventively, or water pipes are cleaned with chemicals. We offer 1 year warranty on construction errors.
Choose quality and durability
Choose the PT1 pig nipple to provide your pigs with reliable and clean drinking water. Please feel free to contact us if you want to have delivered the factory drinking nipples at a small extra cost with a Viton O-ring or as a whey nipple. Order now and experience the benefits of this high quality drinking nipple.
